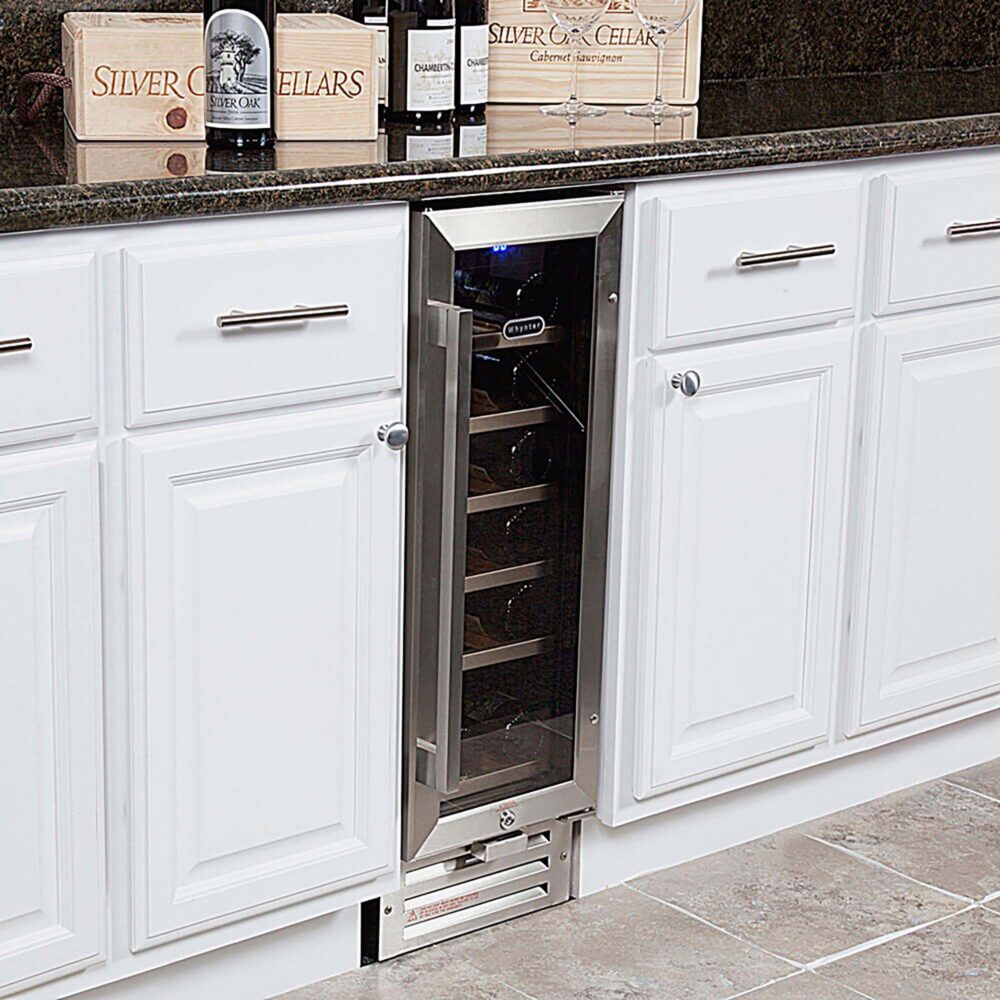

The Whynter Built-in undercounter wine refrigerator offers premium quality and innovative design ideal for your wine collecting needs. Whether for the enthusiast or the connoisseur, the Whynter built-in undercounter wine refrigerator provides affordable yet advanced wine storage functionality. This Whynter single zone wine storage system (BWR-18SA) can hold up to 19 standard 750ml wine bottles. The powerful compressor cooling system offers optimum temperature (high 30ºF to mid 60ºF) for red, white, and sparkling wines. The front ventilation design of this unit allows for flush with cabinet undercounter installation or simply freestanding usage.
The premium appeal of the BWR-18SA features an exclusive stainless steel trimmed door and a heavy stainless steel L-bar handle. The six removable stainless steel trimmed wood racks in the unit allow for maximum storage capacity
| Installation Type | Freestanding / Built-in |
|---|---|
| Bottle Capacity | 19 standard 750ml wine bottles |
| Zone Type | Single |
| Cooling System Type | Compressor |
| Seamless Door | No |
| Reversible Door | No |
| Door Lock | Security Lock and key |
| Temperature Range | 40ºF – 72ºF |
| Celsius Option | Yes |
| Humidity Tray | Yes |
| Refrigerant | R600a |
| Maximum Power Consumption | 130 watts / 1.6 A |
| Unit Dimensions | 34.5” H x 12" W x 22.5" D (24.5" D with handle installed) |
| Shelf Type | Slide out Metal shelves |
● Capacity: 19 standard 750ml wine bottles

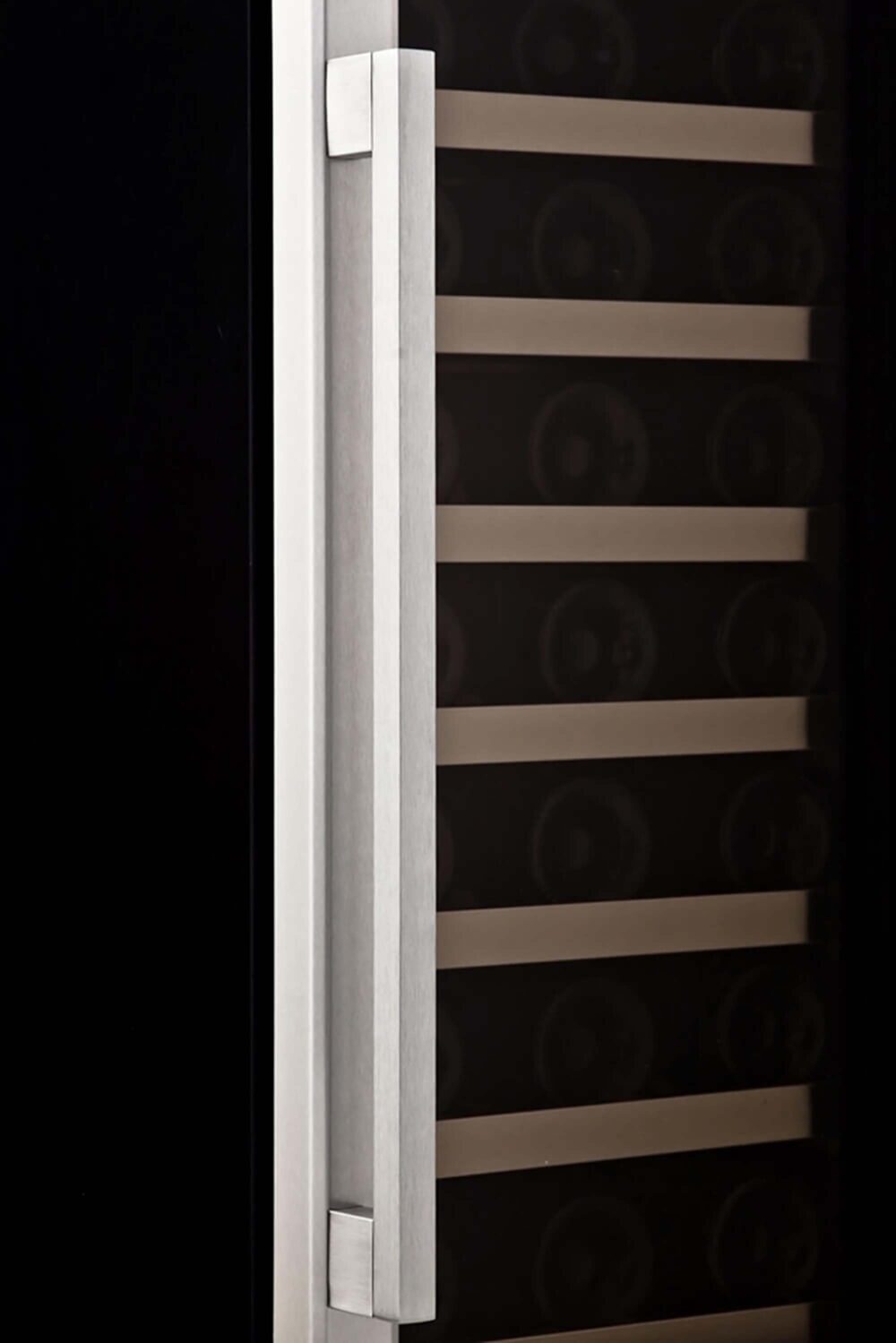

● Luxurious stainless steel L-bar handle
● Double-pane glass doors offer superior UV isolation and energy efficiency

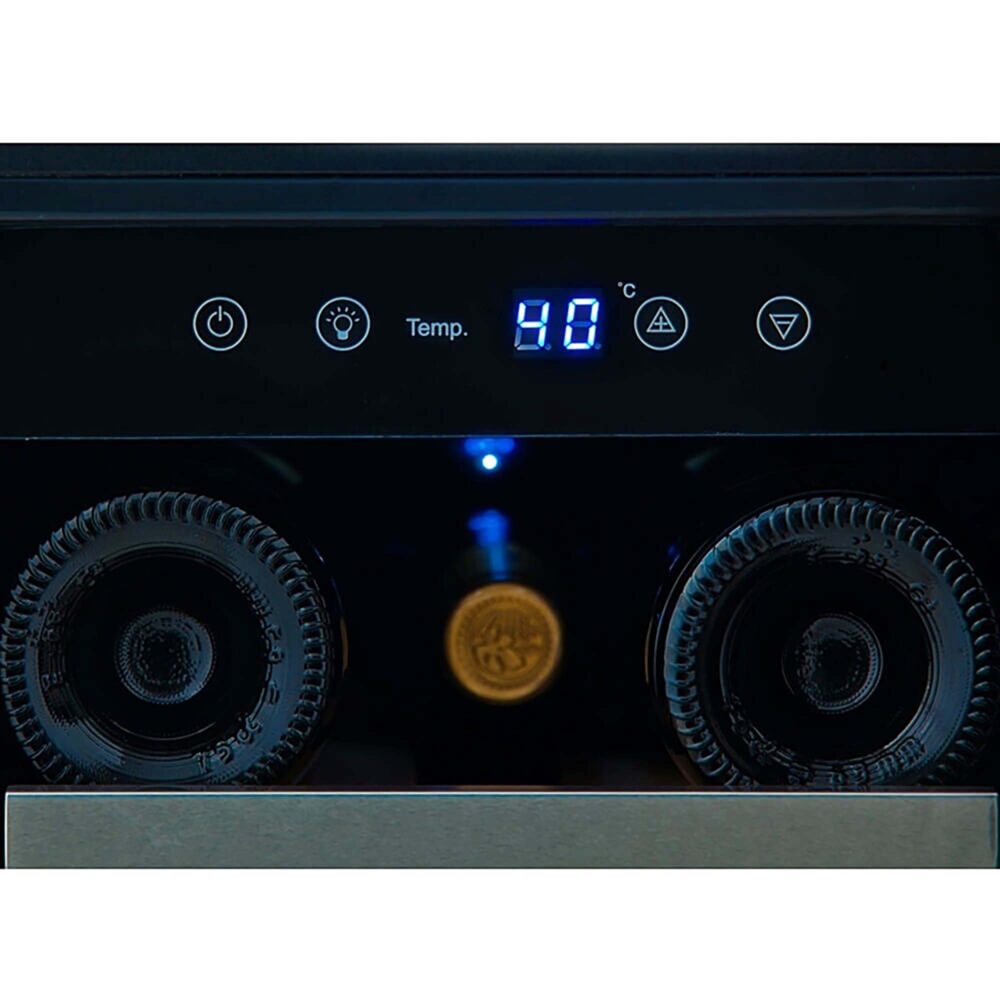

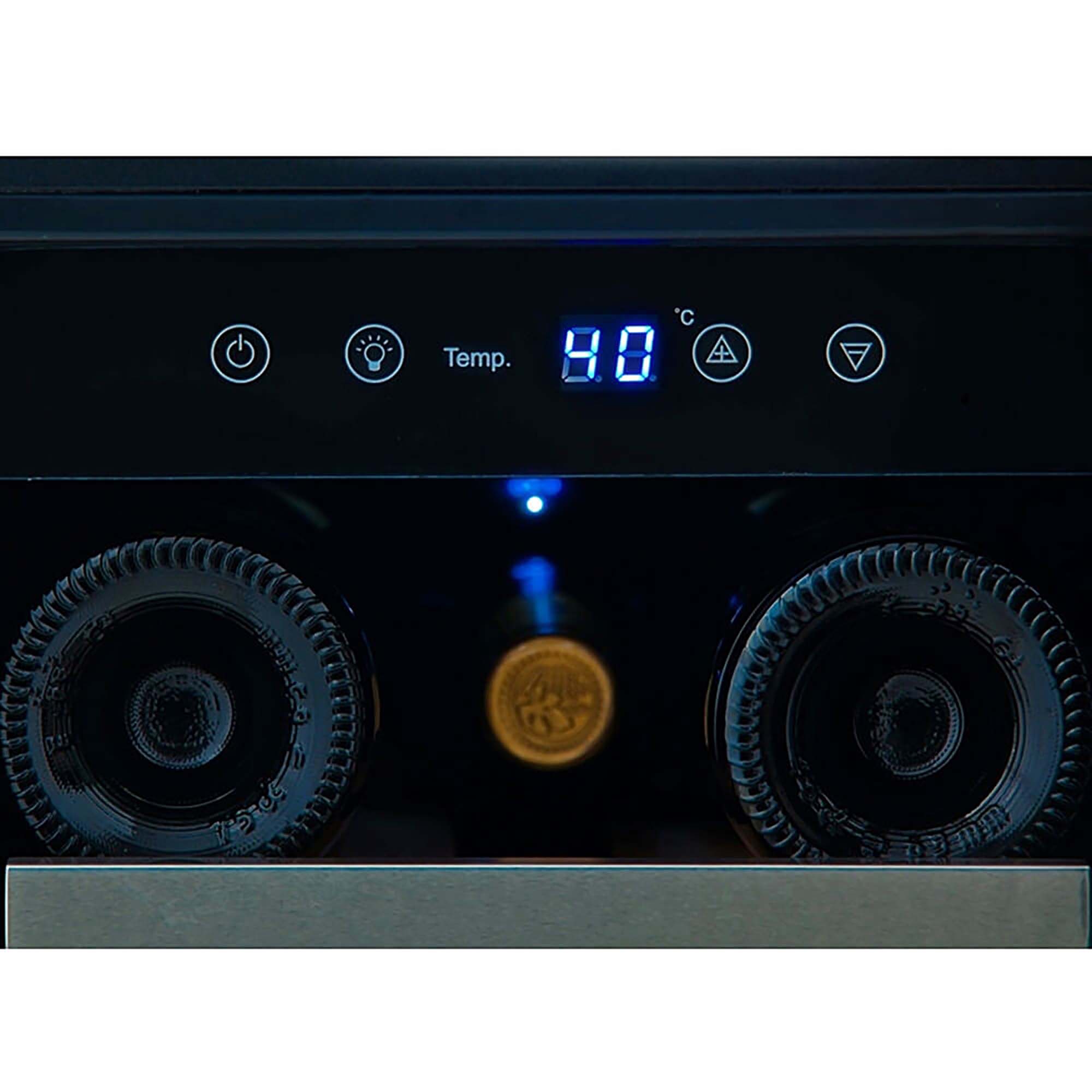

● Digital LED temperature control with temperature range from 40ºF – 72ºF
● Soft interior LED lighting with on/off switch
● Powerful fan-circulated compressor cooling ensures even temperature distribution
● Auto defrost
● Optional humidity control tray
● Activated carbon filter
● Security Lock and key
● Fahrenheit and Celsius degree temperature indicators

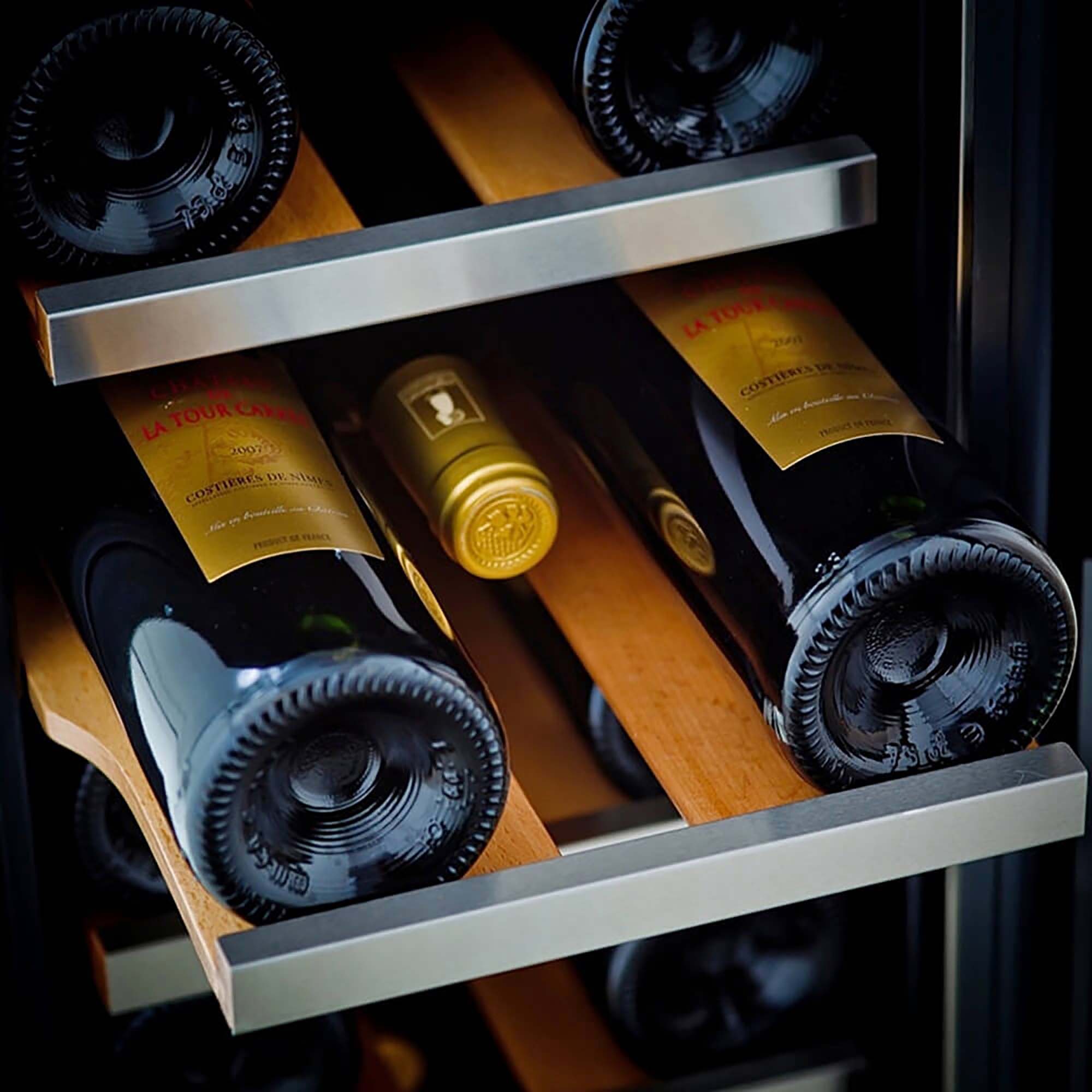

● Six removable flat slide out stainless steel-trimmed wood shelves
● Top shelf: 3 bottles capacity (if humidifying tray installed, 2 bottles)
● Shelf Two through Five: 3 bottles
● Bottom shelf: 4 bottles
● Voltage: 115V /60Hz
● Power: 130 watts / 1.6 Amps
● ETL listed
● Product dimensions: 34.5” H x 12″ W x 22.5″ D (24.5″ D with handle installed)
● Package dimensions: 40″ H x 16″ W x 27″ D
● Net weight: 65 lbs
● Gross weight: 75 lbs
● UPC 852749006221
*This unit comes with one year limited warranty.
Single zone units keep one consistent temperature throughout the cabinet. They’re ideal for storing one type of wine. Dual zone units provide two separate temperature-controlled sections so you can store reds and whites at their preferred temperatures at the same time.
Yes. Built in models can be used freestanding because they vent from the front. Just be sure you have enough room for proper airflow around the back and sides.
No. Freestanding units vent heat from the rear and need space around them. Enclosing them will trap heat and shorten the life of the unit.
Capacity is based on standard 750 ml Bordeaux style bottles. If you store larger or wider bottles, the total capacity will be lower.
Yes, but you may need to remove a shelf or adjust shelving to make room for oversized bottles like Champagne, Pinot Noir, or specialty blends.
Built-in units only need clearance at the front for ventilation. Freestanding units require at least 4 to 6″ of space at the back and sides so the compressor can breathe properly. For full details, see the installation manual.
Yes. Shelves can be removed or repositioned depending on the model. This lets you store larger bottles when needed.
For single zone units, a middle range around the low to mid 50s works for most wines. For dual zone models, the upper zone is typically set for reds in the mid to upper 50s and the lower zone for whites in the mid 40s to low 50s.
You can, though keep in mind the shelves are designed for wine bottles. Cans and other bottles may fit differently depending on size.
They run quietly. Like any refrigeration appliance, you’ll hear a low hum during compressor cycles, but it shouldn’t be disruptive.
Most units reach the set temperature within a few hours, though this can vary depending on ambient temperature, how often the door is opened, and how full the unit is.
Many models come with a reversible door, but not all. Check your specific model to confirm.
A small amount of moisture can be normal. If it becomes excessive, check that the door is sealing properly and that the room isn’t too humid.
